DRV8889-Q1: Verify waveform

$
0
0
Part Number: DRV8889-Q1

Hello team,

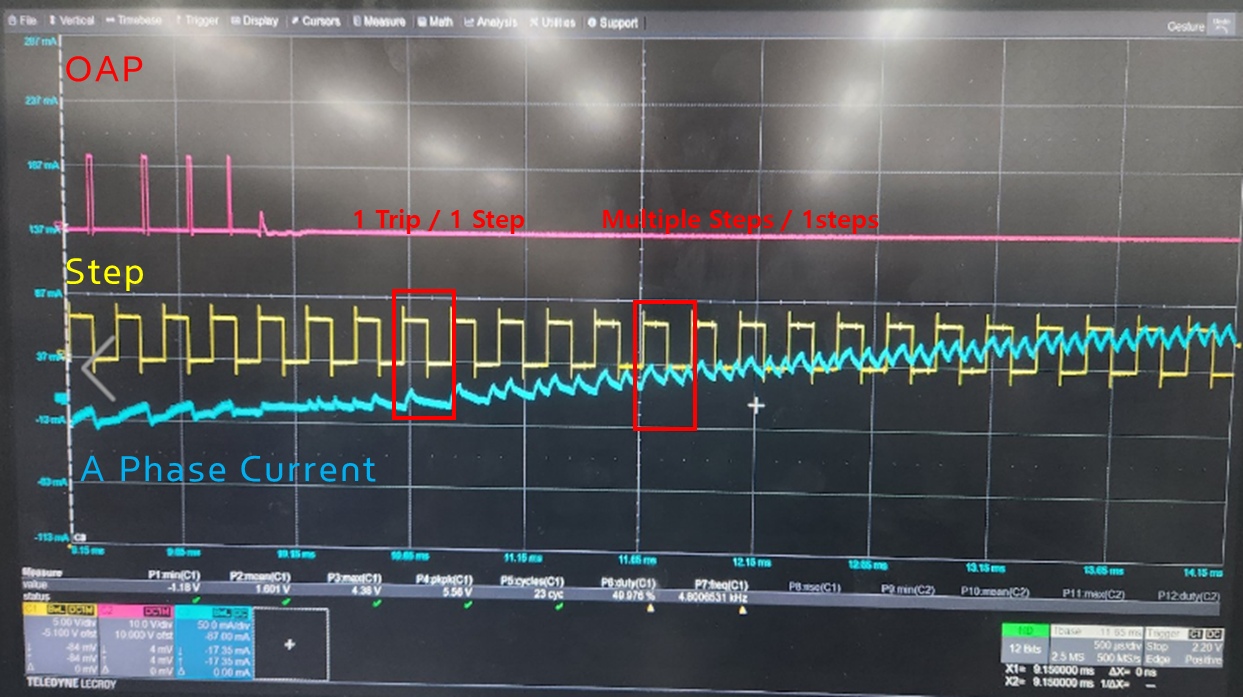

A customer wanted to verify that the following waveform is a normal waveform or not. They point out that a step has more than one peak/valley. Is it correct?

     Test condition: 1/32 microstep, Current = 92mA, Smart Ripple control



Thanks,

Sam Lee
