Part Number:DRV8889-Q1
Hello team,
This is Ochi. I have a question about Table3 to Table5 in a datasheet of DRV8889-Q1.
Are there any mistypes in Table3 to Table5 in a datasheet?

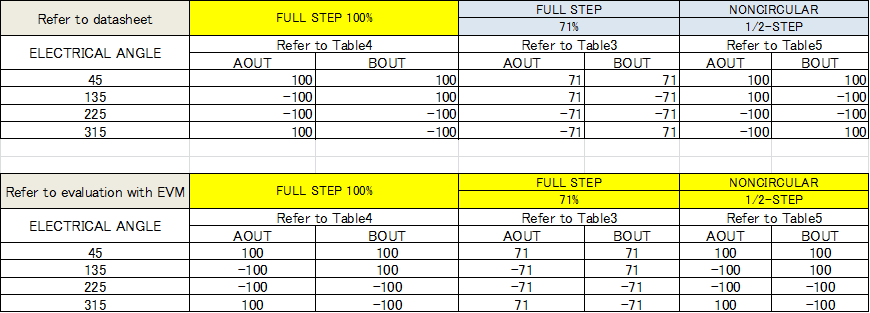

Table3, Table4, and Table5 show correspondence between electrical angles and output currents about some step modes respectively. I evaluated these operations with EVM. Then, I saw some operations are different from those in datasheet. I summarized these operations, which are shown below.
Best regards,
Ochi
