Part Number:DRV10983-Q1
Dears：

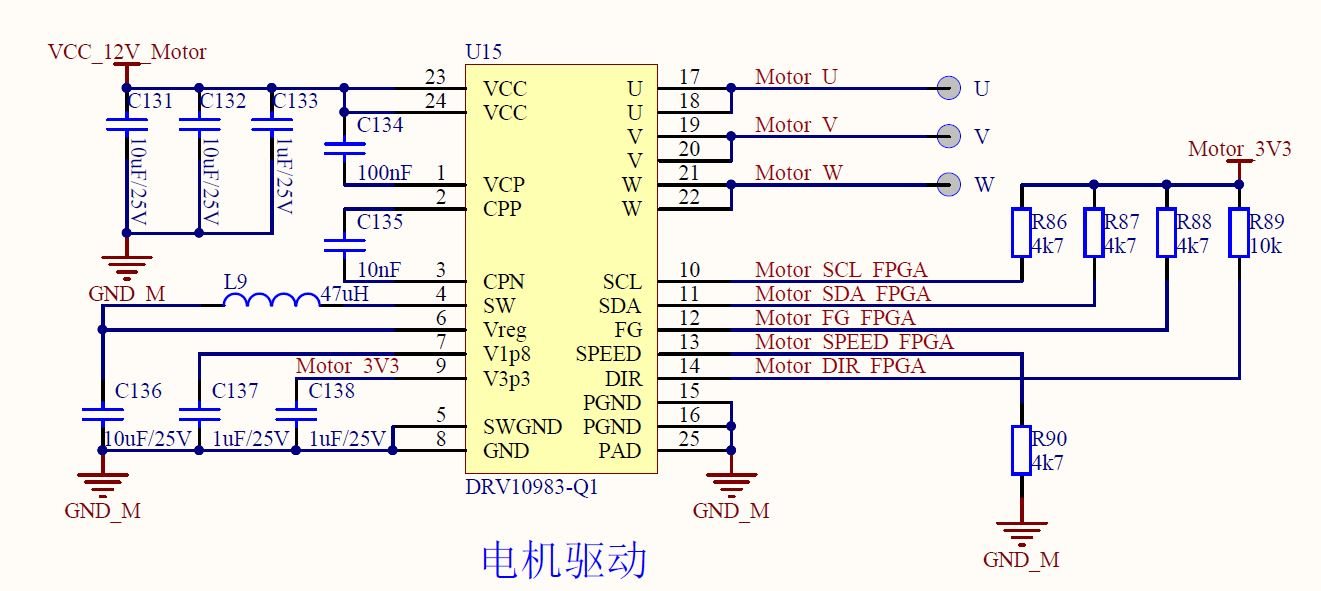

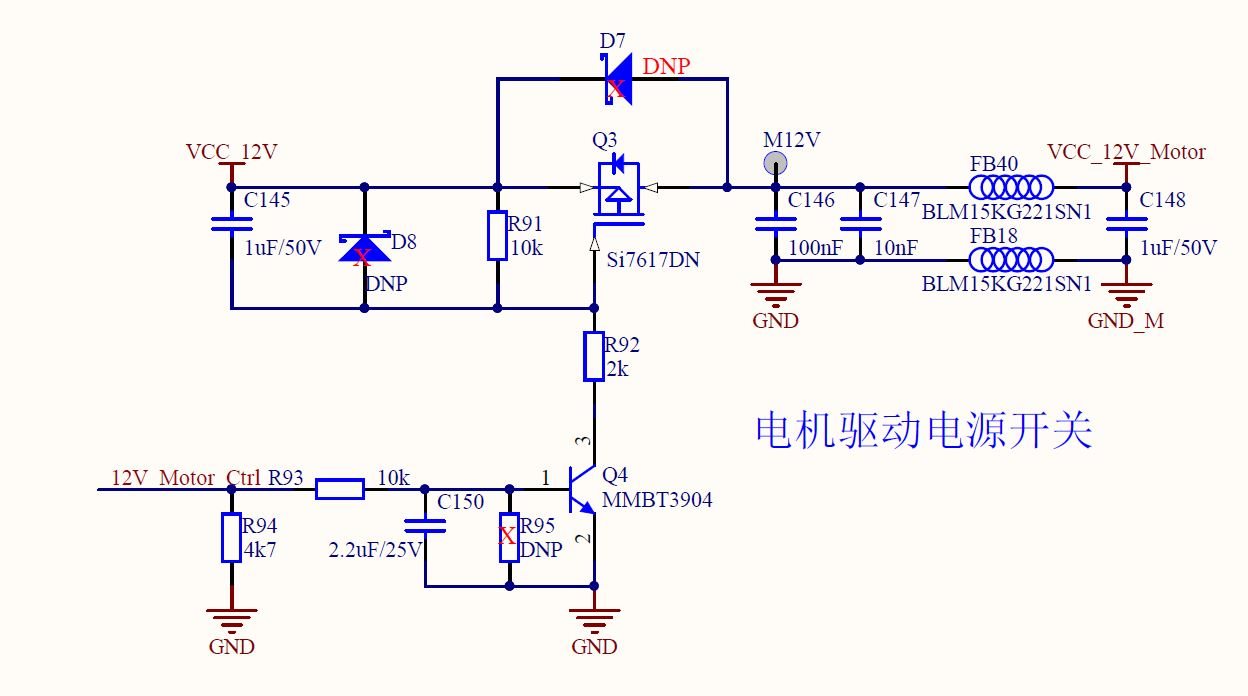

Could you kindly help to check the schematic, and there is an issue about the design.
Since the Motor will stop and the setting parameters as follows:
DRV10983寄存器地址（HEX） | 数值（HEX） |
20 | 59 |
21 | 2B |
22 | 2A |
23 | 01 |
24 | 1c |
25 | 64 |
26 | 8A |
27 | FC |
28 | 57 |
29 | B5 |
2A | 0D |
2B | 0E |
