Part Number:DRV8353RH-EVM
Hi ,

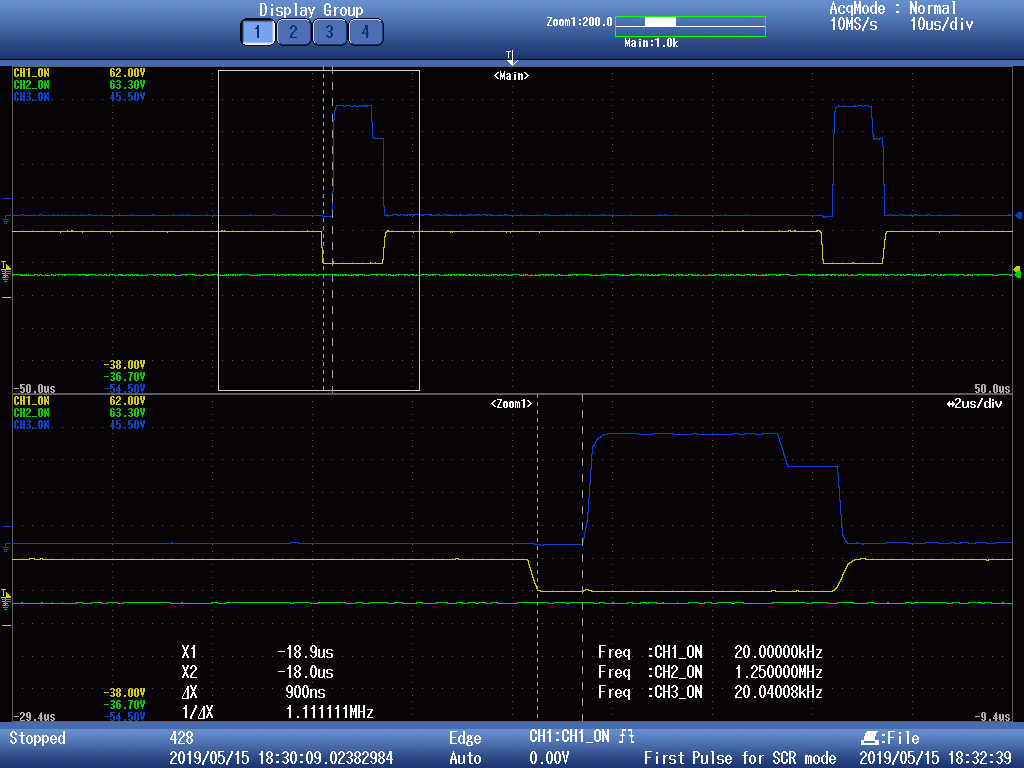

We are using DRV8356 evaluation board proving the concept, find the waveform attached .
Channel 3 (blue) :- High-Side Mosfet Gate voltage (Q3 Gate) with reference with power ground.
Channel 1 (yellow) :- Low-Side Mosfet Gate voltage (Q5 Gate) with reference with power ground.
We observe the Step of 900ns on Channel 3 high-side gate signal, and Low side gate signal is already ON state before high -side mosfet gate signal signal is low.
Please let us know the reason for this step, can this be eliminated by modifying PWM parameters in the code .
