DRV8353R: buck convertor Rout

$
0
0

Part Number:DRV8353R

Hi all,

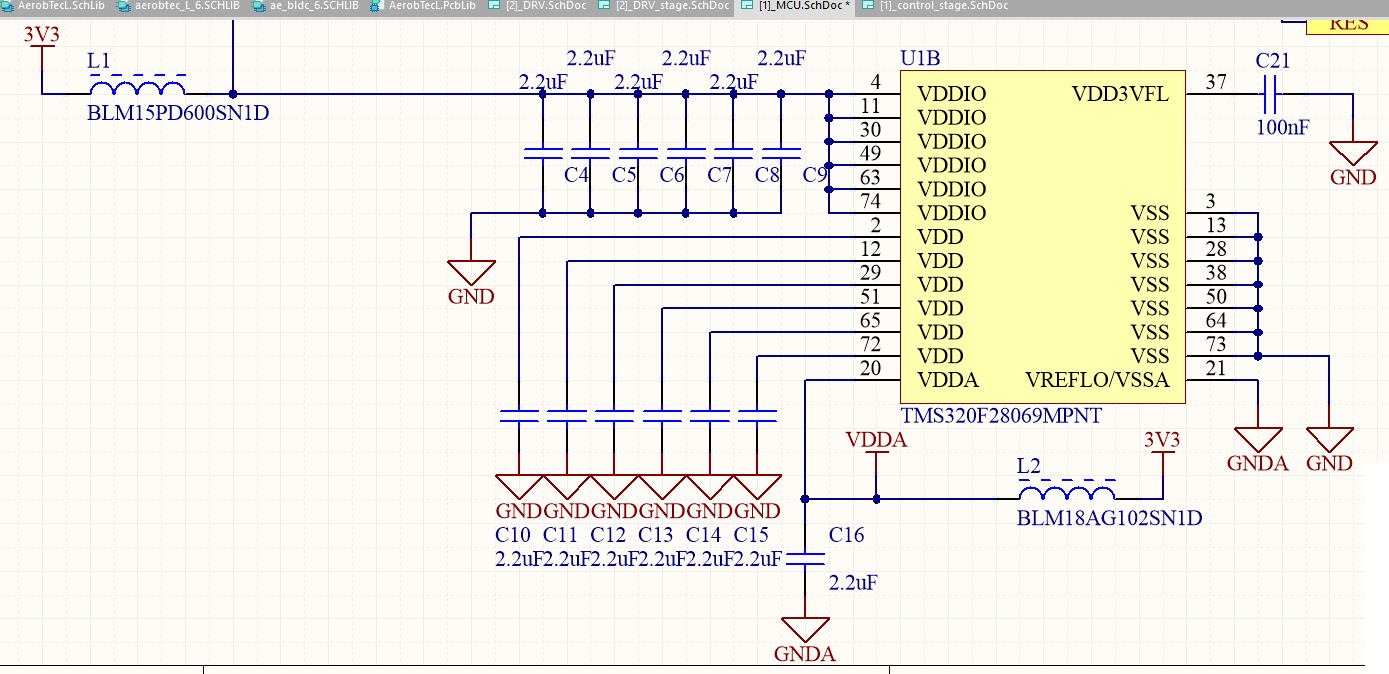

I've just started designing buck converter with DRV8353R and realized there is Rout in series with Cout ensuring there is still some required minimum voltage ripple. However I need to connect an MCU with 6pcs 2.2uF capacitors (with a ferrite bead) and some other circuits with decoupling capacitors. I would say these capacitors would reduce the ripple too much? What should be done in this case? To reduce the decoupling capacity?

This post might be moved to power management forum instead.

Thank you.
