DRV8711 Distorted Current Winding

$
0
0

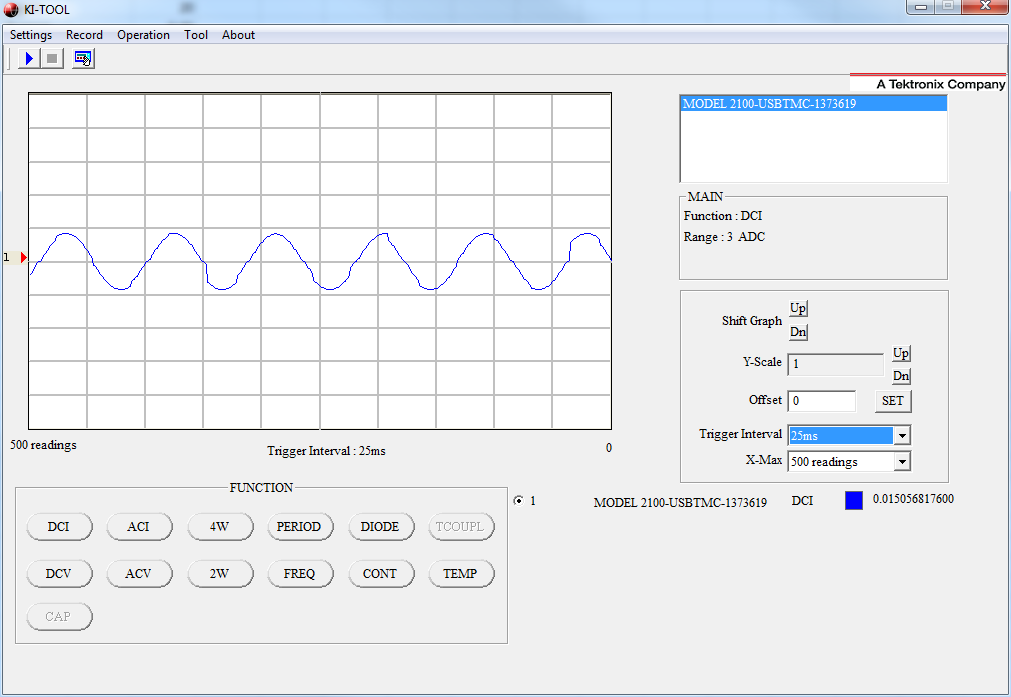

Does anyone have any idea what would cause the winding current to be distorted in this way. I have tried a few different settings but the distortion stays about the same. I am moving very slowly. The settings used below are TBLANK 1us TDECAY 5us and TOFF 9us. MODE 010.

Thanks,

Derek
